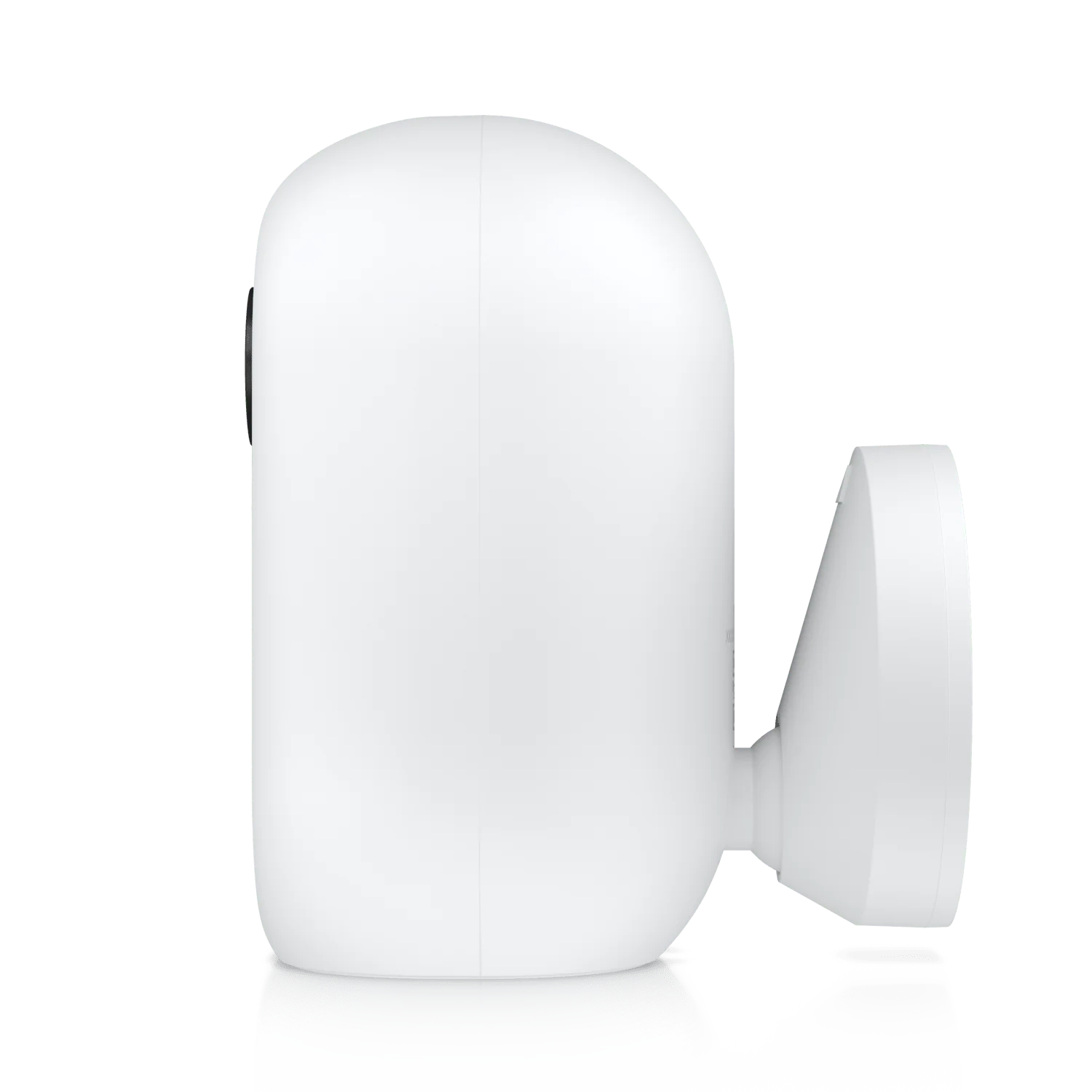

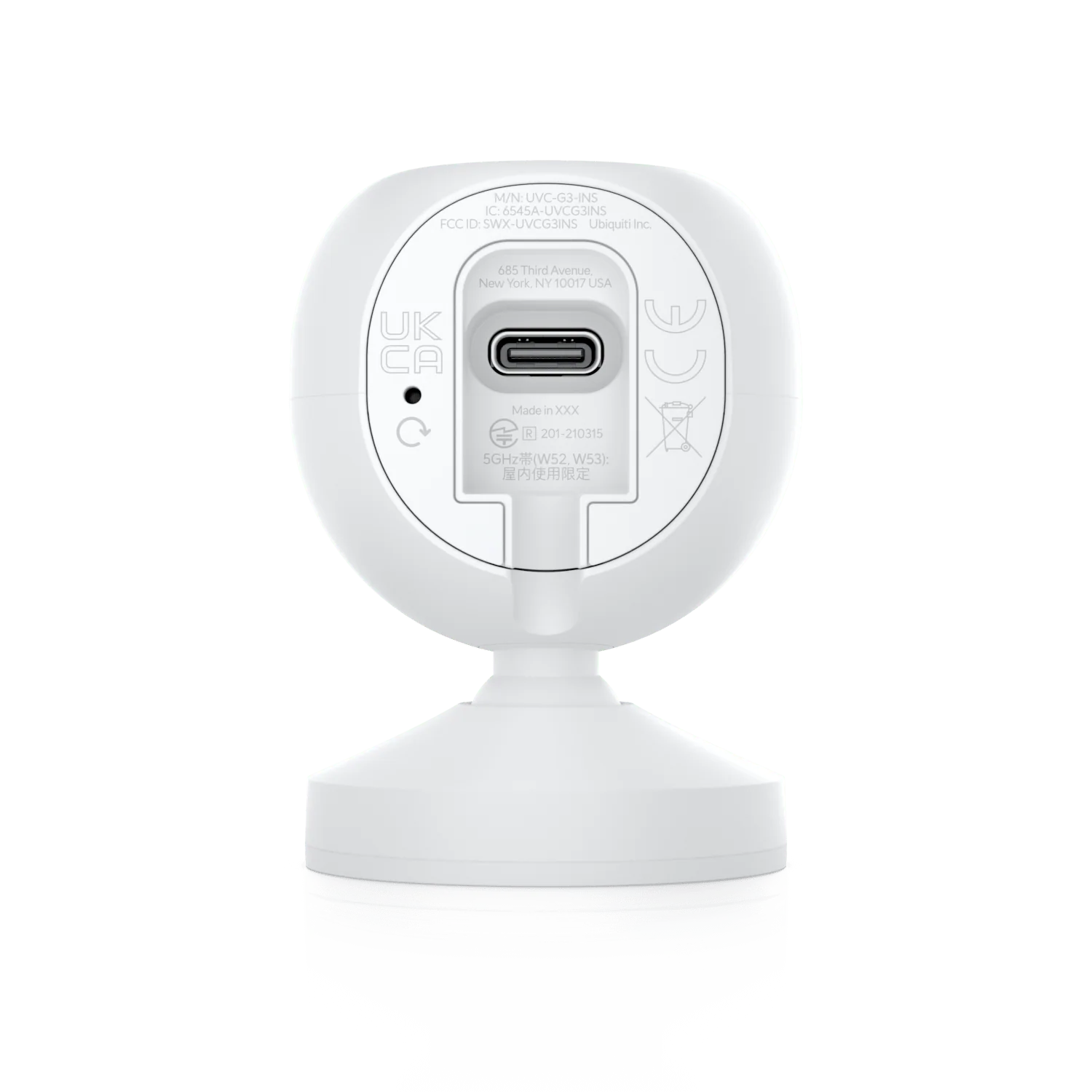

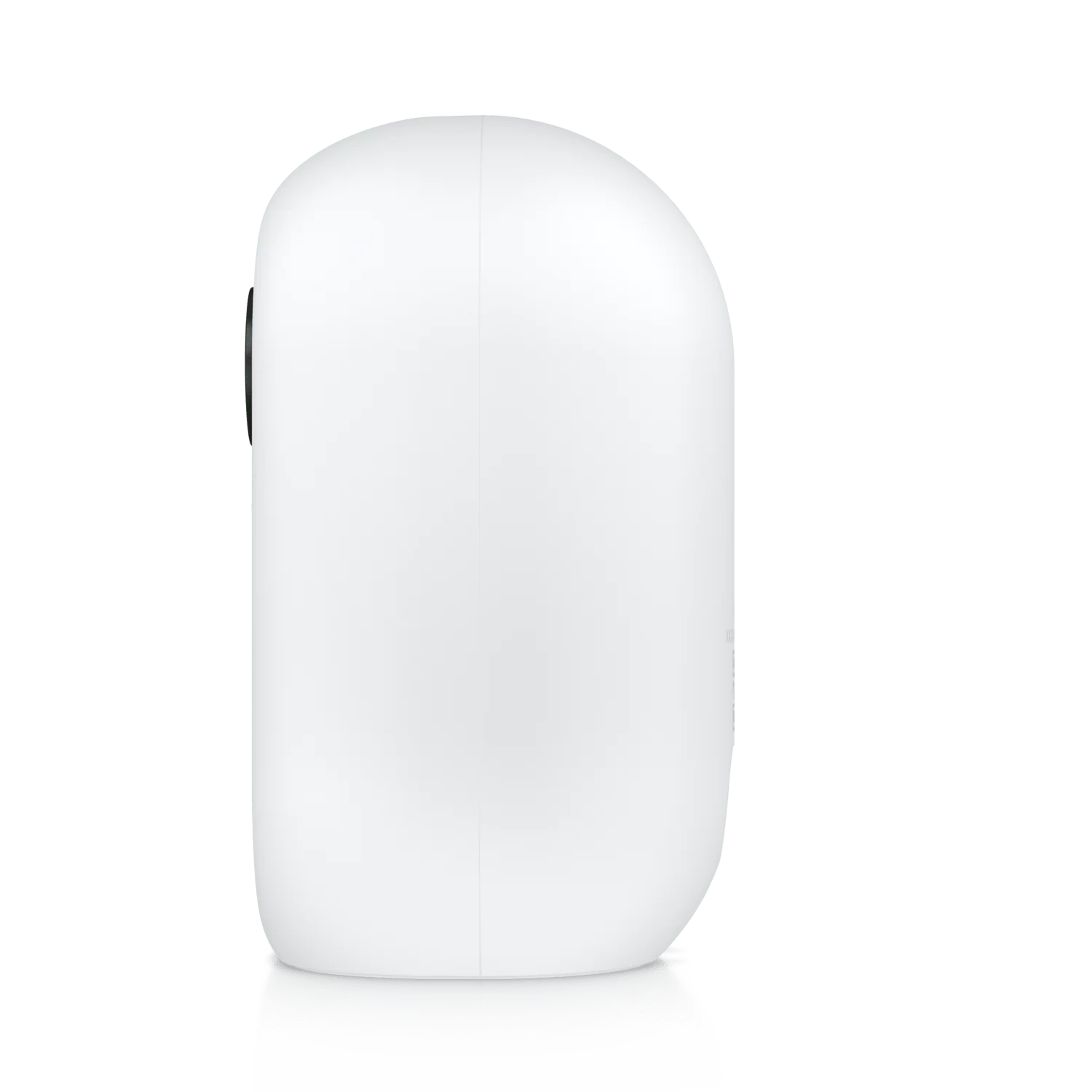

Ubiquiti UVC-G3-INS G3 Instant 2MP Cube IP Camera

Compact G3 Instant 2MP Cube IP Camera

Enhance your home or office security with the Ubiquiti UVC-G3-INS, a compact 2MP Cube IP camera offering full HD video resolution, ultra-wide viewing angle, and seamless WiFi connectivity. With versatile mounting options and integrated two-way audio, this camera is designed to meet all your surveillance needs.

Highlights

• Full HD (2MP) video resolution
• Ultra-wide viewing angle of 111.3°
• 6 m (20 ft) IR night vision
• WiFi-connected with UniFi WiFi Auto-Link
• Integrated two-way audio for real-time communication

Key Features

1. High-Resolution Video
   • FHD (2MP) Video: Captures clear and detailed video at 1920 x 1080 resolution.
   • Ultra-Wide Angle: Provides a wide field of view with a horizontal angle of 111.3°, vertical angle of 58.9°, and diagonal angle of 133.6°.
2. Night Vision
   • Built-in IR LEDs: Ensures visibility up to 6 meters (20 feet) in low-light conditions with an IR cut filter.
3. Wireless Connectivity
   • WiFi Auto-Link: Connects wirelessly with UniFi networks for easy setup and integration.
   • Bluetooth Support: Facilitates initial setup and configuration.
4. Two-Way Audio
   • Integrated Microphone and Speaker: Allows for real-time communication and can be disabled if needed.
5. Versatile Mounting
   • Table or Wall Mounting: Comes with a wall mount accessory for flexible installation options.
6. Energy Efficient
   • Low Power Consumption: Max power consumption of 5W using a 5V, 2A USB power adapter (included).

Technical Specifications

• Mechanical:
  • Dimensions: 74 x 44 x 43 mm (2.9 x 1.7 x 1.7")
  • Weight: Without mount: 78 g (2.8 oz); With mount: 92 g (3.3 oz)
  • Enclosure Material: Polycarbonate
  • Mount Material: Polycarbonate
• Optics:
  • Sensor: 2MP CMOS
  • Lens: EFL 2.8 mm, ƒ/2.0
  • View Angle: H: 111.3°, V: 58.9°, D: 133.6°
  • Night Mode: Built-in IR LED illumination and IR cut filter
• Video:
  • Resolution: 2MP 1920 x 1080 (16:9)
  • Max. Frame Rate: 30 FPS
  • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• System:
  • Processor: Dual-core Arm® Cortex®-A7 based chip
  • Networking Interface: 802.11 a/b/g/n/ac WiFi, Bluetooth
  • Max. Power Consumption: 5W
  • Power Method: 5V, 2A USB power adapter (Included), Instant PoE to USB adapter (Not included)
  • Supported Voltage Range: 5V DC, 2A
  • LED: R/G/B/W
  • Button: Factory reset
  • Mounting: Wall mount accessory (Included)
  • Operating Temperature: 0 to 40° C (32 to 104° F)
  • Operating Humidity: 0 to 90% noncondensing
  • Certifications: FCC, IC, CE
• Audio:
  • Microphone: Yes (Can be disabled)
  • Speaker: Yes
• Software:
  • Web Application: UniFi Protect
  • Mobile App: UniFi Protect iOS™ and Android™

Summary

The Ubiquiti UVC-G3-INS G3 Instant 2MP Cube IP Camera offers high-definition video quality, wide-angle viewing, and seamless wireless connectivity, making it an ideal solution for enhancing your security setup. With integrated two-way audio and versatile mounting options, this compact and efficient camera ensures reliable performance and easy installation.
