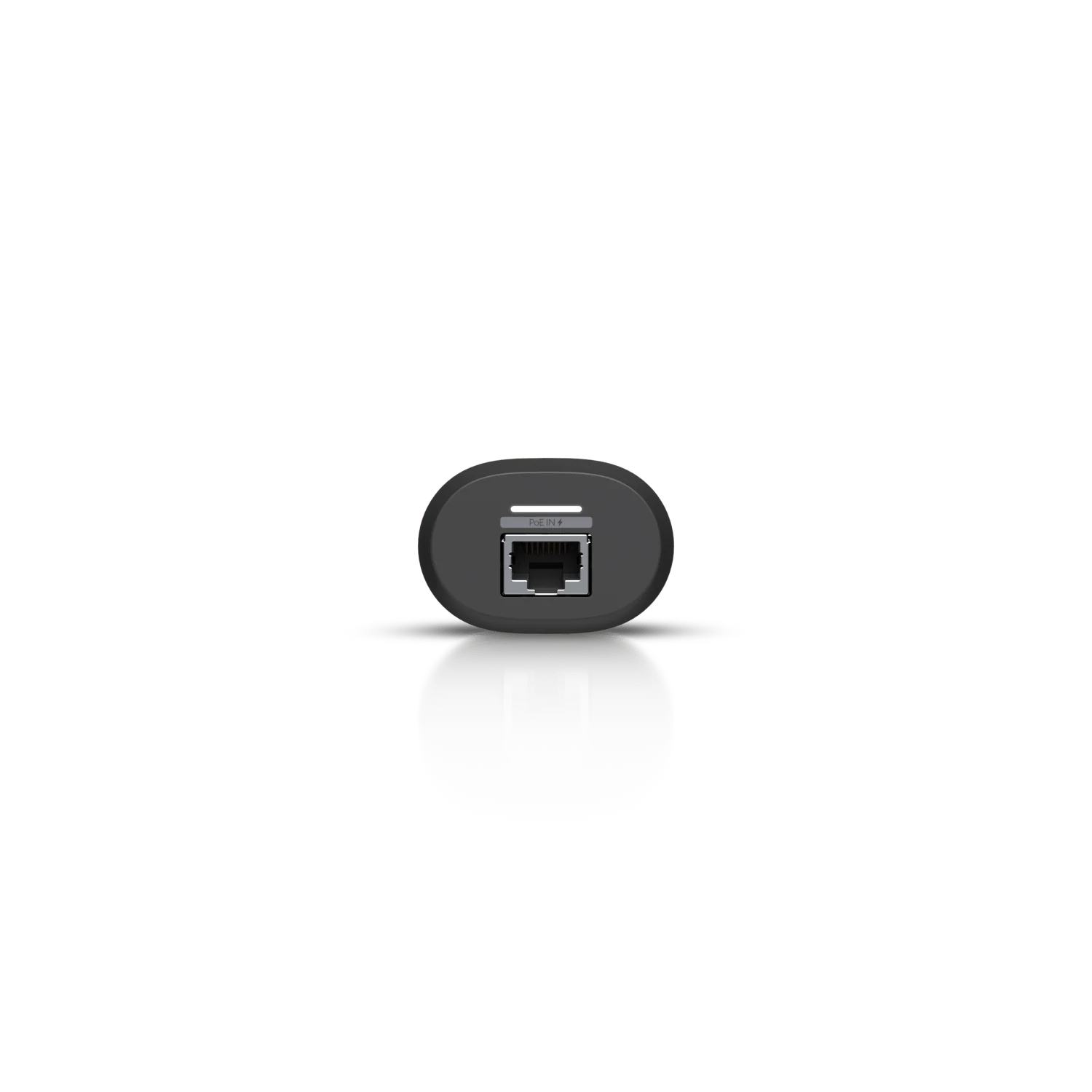

Ubiquiti UP-VIEWPORT Protect Viewport
Seamless 4K Camera Feed Viewing
The Ubiquiti UFP-VIEWPORT Protect Viewport allows you to easily view camera feeds from your UniFi Protect system on any HDMI display, with support for up to 16-stream matrix view and output up to 4K resolution at 30 FPS. This device is ideal for environments where continuous monitoring of camera streams is required.
Key Features
- 4K HDMI Output: Supports video output up to 4K @ 30 FPS, ensuring crystal-clear surveillance footage on a connected display.
- Matrix View: Allows for a 16-stream matrix view, providing comprehensive monitoring of multiple camera feeds simultaneously.
- PoE Power: Powered via Power over Ethernet (PoE), simplifying the setup with just one cable for both power and connectivity.
- Flexible Mounting: Can be mounted easily in various environments, adding flexibility to your surveillance setup.
- Bluetooth 5.0: Integrated Bluetooth for wireless setup and management.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Octa-core ARM® |
| Memory | 4 GB low power DDR4X |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 9.5W |
| HDMI Output | Up to 4K @ 30 FPS |
| ESD/EMP Protection | Air: ±8kV, contact: ±4kV |
| Bluetooth | Bluetooth 5.0 |
| Antenna Gain | 2 dB |
Summary
The Ubiquiti UFP-VIEWPORT Protect Viewport is a reliable solution for displaying multiple camera streams on a 4K HDMI display. With PoE power, flexible mounting, and support for 16-stream matrix view, it’s a valuable addition for any UniFi Protect surveillance system.
