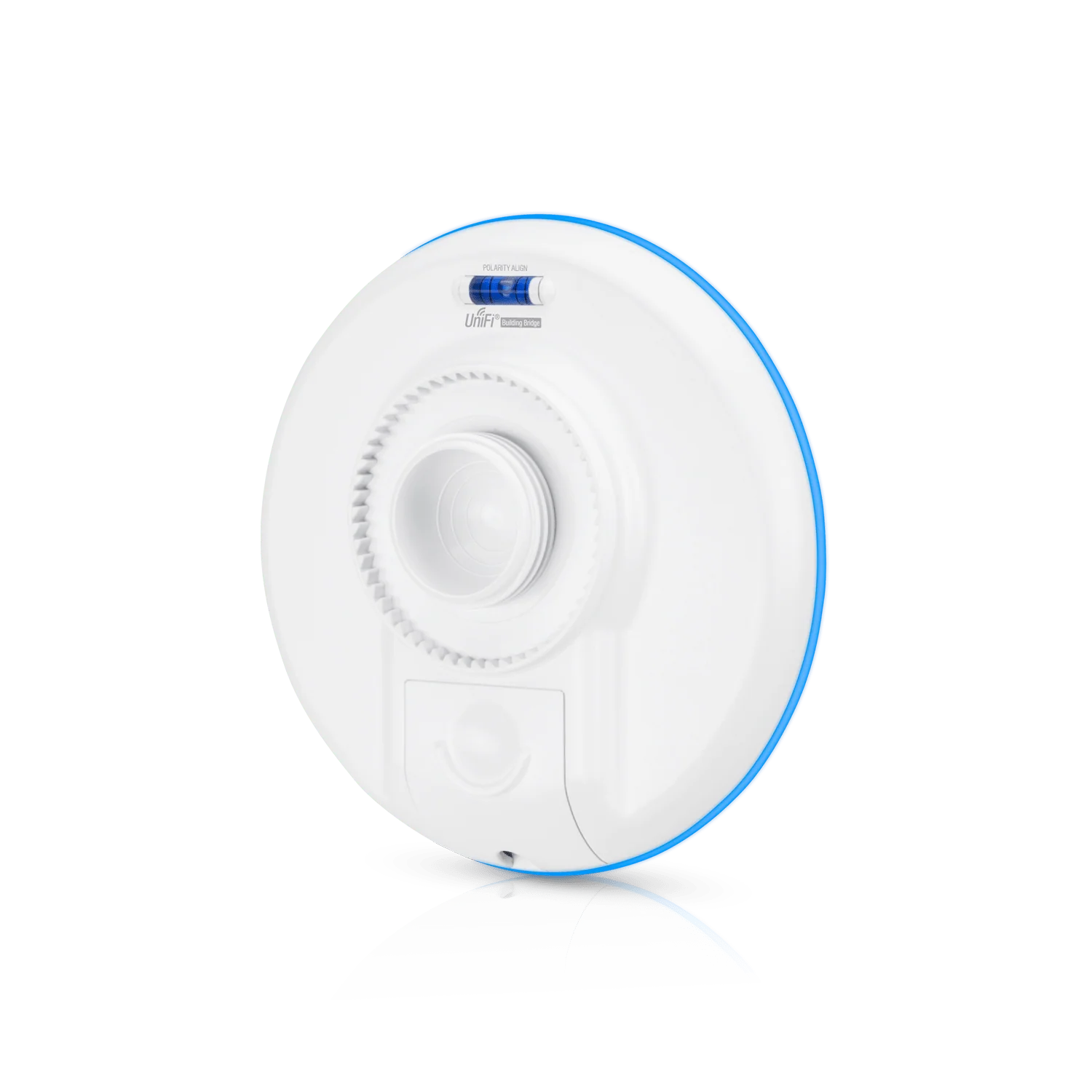

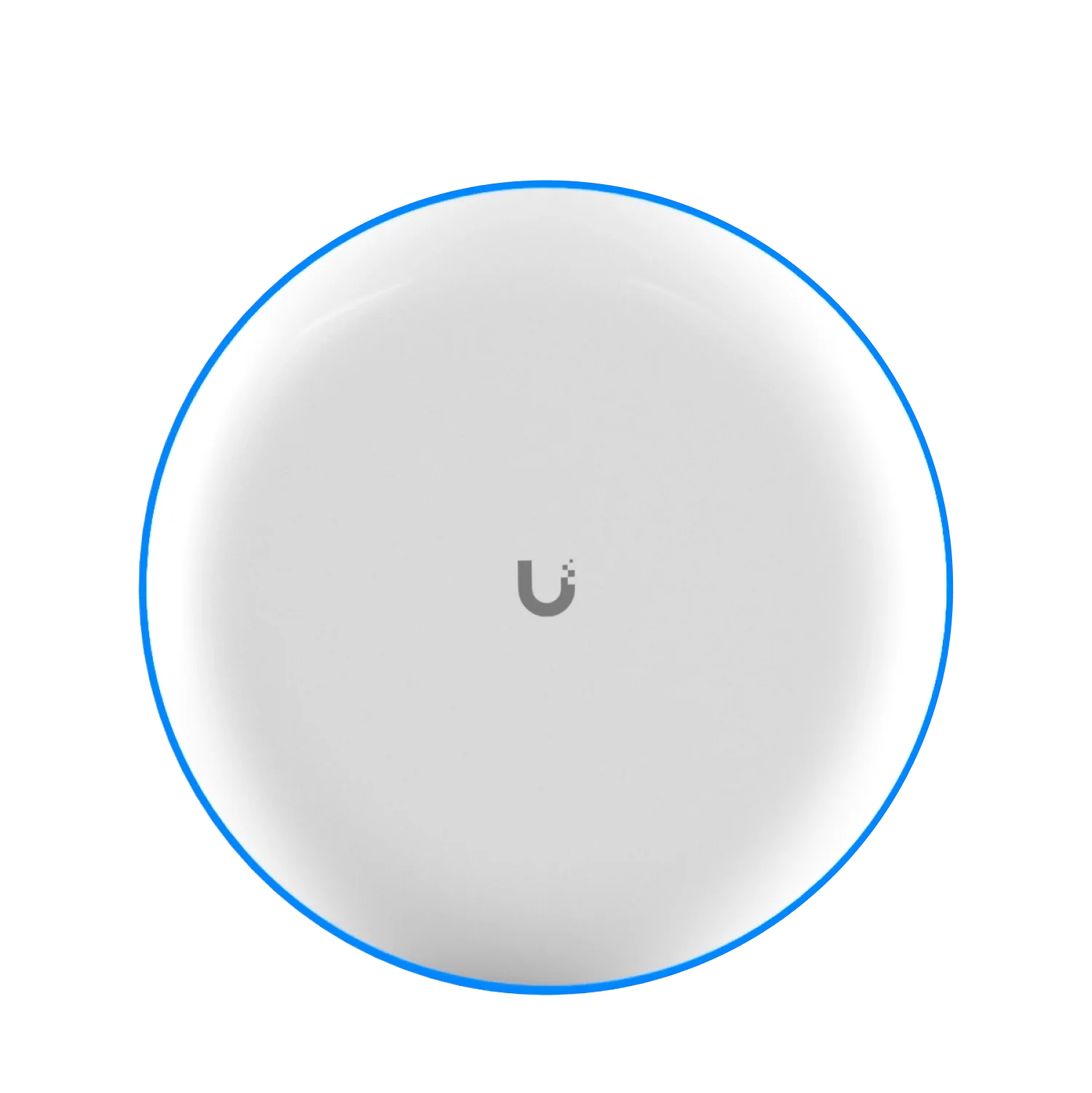

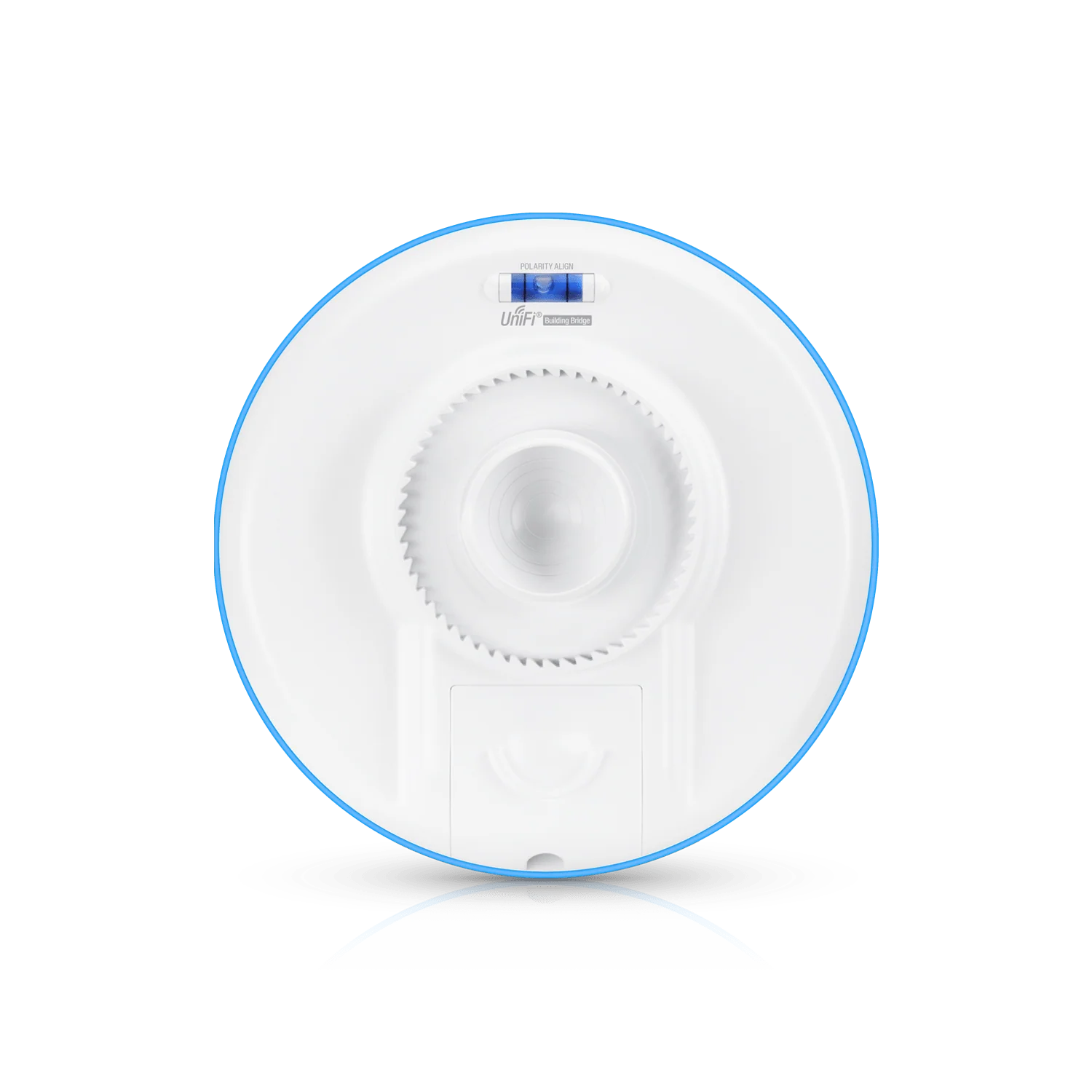

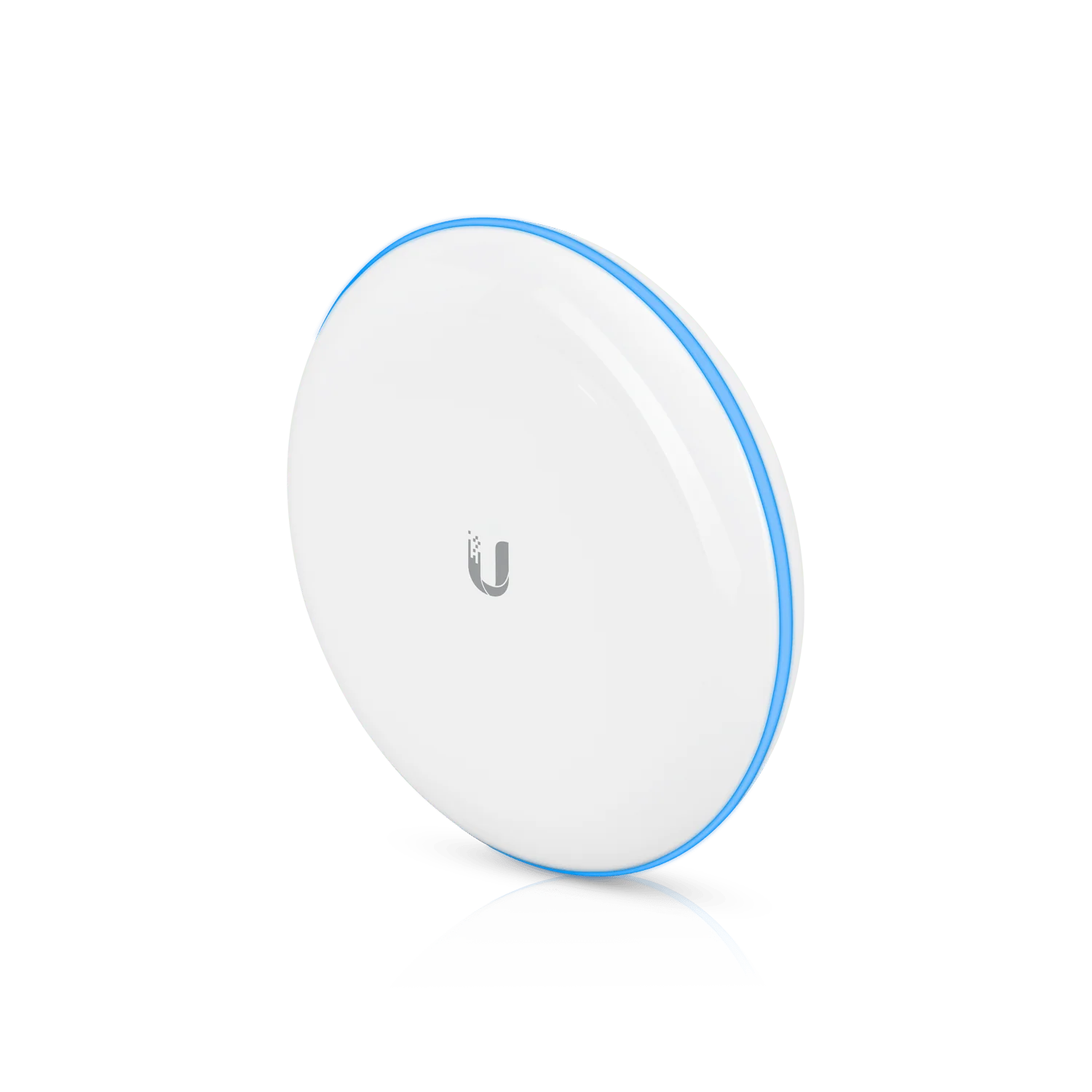

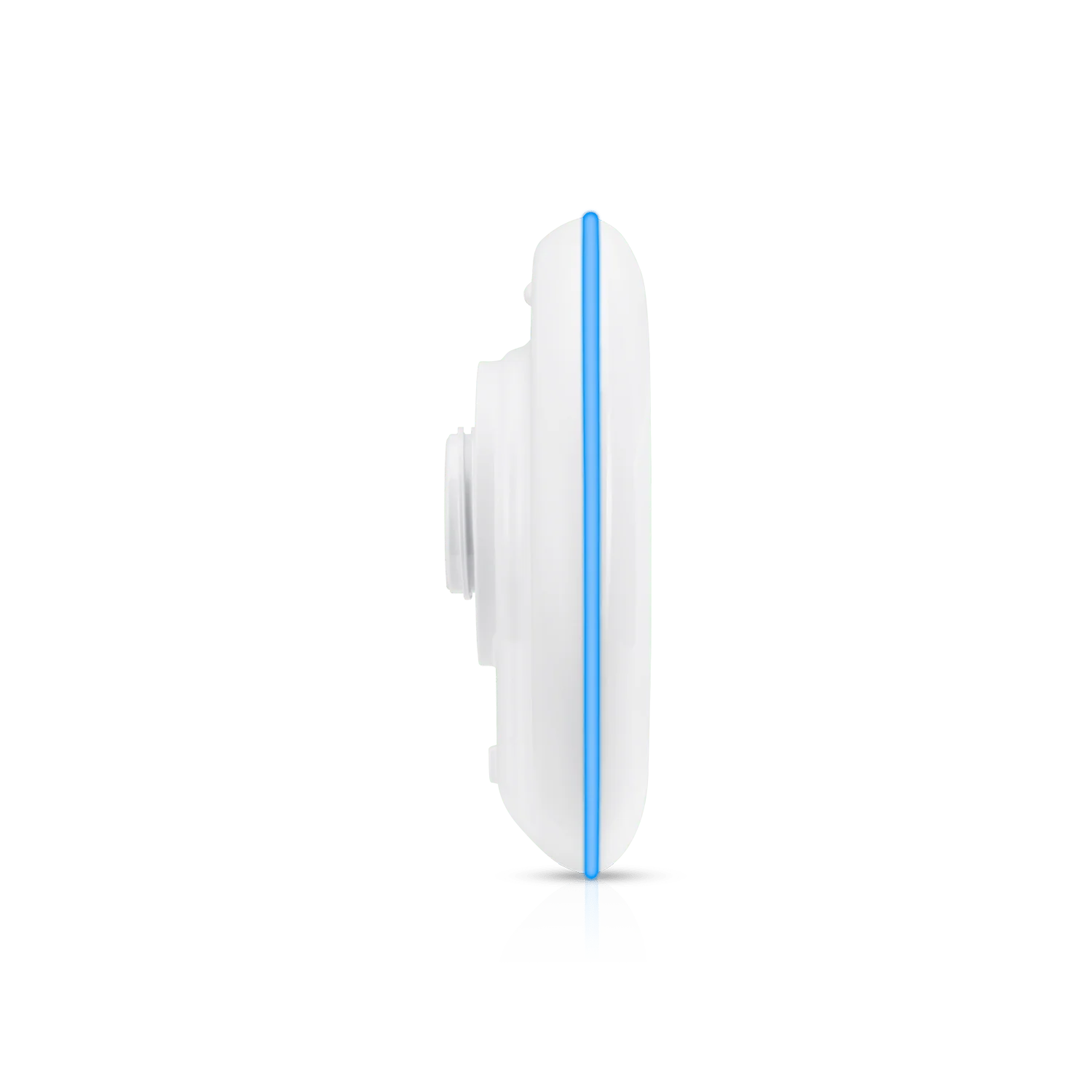

Ubiquiti UBB Building Bridge

High-Speed Wireless Point-to-Point Connectivity

Experience superior point-to-point connectivity with the Ubiquiti UBB Building Bridge. This 60 GHz wireless bridge offers robust performance and dual-radio redundancy, making it ideal for extending network infrastructure between buildings.

Highlights

• 60 GHz Wireless Bridge: High-speed point-to-point connectivity
• Maximum Range: Up to 500 m (1,640 ft)
• Dual-Radio Redundancy: 60 GHz & 5 GHz for reliable connections
• PoE Powered: Includes PoE power adapters for easy installation
• Built-in LED Alignment Indicators: Simplifies setup and alignment

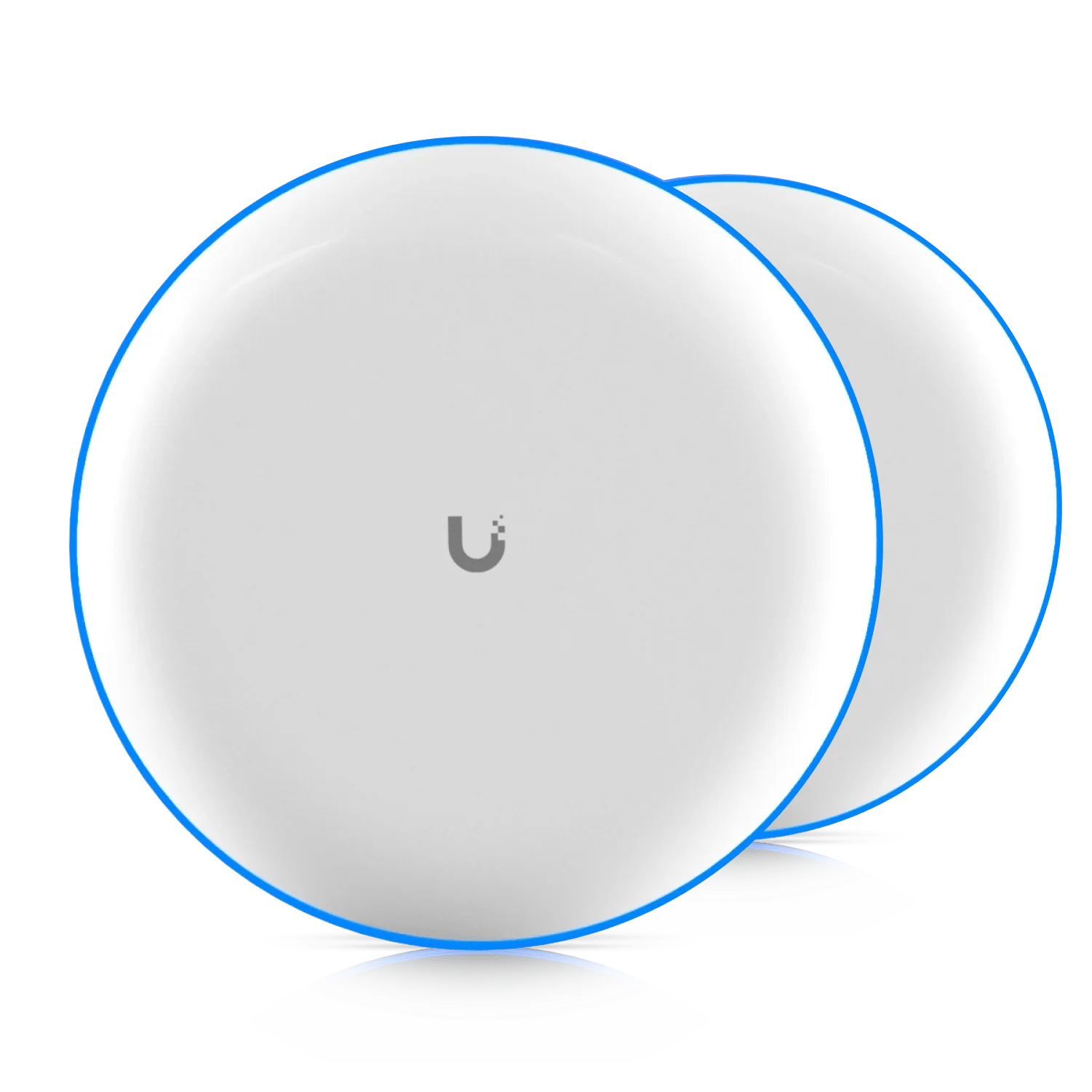

• Sold as 2-Pack: Ready for point-to-point bridge configuration
• Managed by UniFi: Requires UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server

Key Features

• High-Speed Wireless Connectivity

  • 60 GHz radio with 1.7 Gbps data rate
  • 5 GHz radio with 866.6 Mbps data rate (BW80)
  • Dual-radio redundancy for enhanced reliability

• Robust and Flexible Design

  • Maximum range of 500 m (1,640 ft) for long-distance connectivity
  • Built-in LED alignment indicators for easy setup
  • Sold as a 2-pack for point-to-point bridge configuration

• Power and Networking

  • Powered by PoE for easy deployment

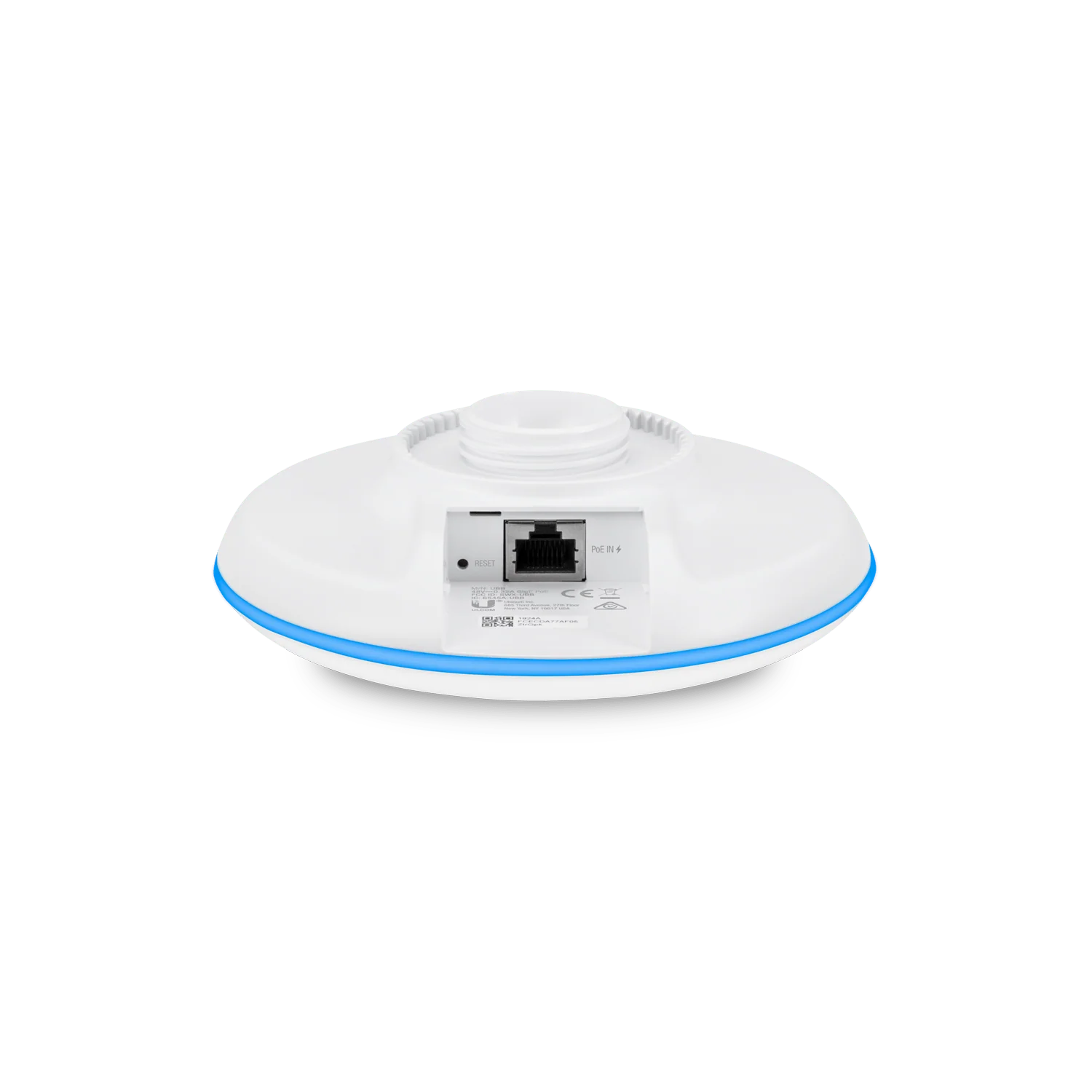

  • Includes (1) GbE RJ45 port
  • Max power consumption of 11W

• Enhanced Management

  • Requires management via UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server
  • Managed via Ethernet and Bluetooth interfaces

Technical Specifications

• Networking Interface: (1) GbE RJ45 port
• Management Interface: Ethernet, Bluetooth
• Power Method: PoE, Passive PoE, 48V
• Power Supply: UniFi PoE switch, 48V, 0.32A Gigabit PoE adapter (included)
• Max. Power Consumption: 11W
• Max. TX Power:
  • 2.4 GHz: N/A
  • 5 GHz: 25 dBm
  • 60 GHz: 32–36.5 dBm
• MIMO:
  • 2.4 GHz: N/A
  • 5 GHz: 2 x 2
  • 60 GHz: N/A
• Max. Data Rate:
  • 2.4 GHz: N/A
  • 5 GHz: 866.6 Mbps (BW80)
  • 60 GHz: 1.7 Gbps
• Antenna Gain:
  • 2.4 GHz: 2 dBi (BLE)
  • 5 GHz: 10 dBi
  • 60 GHz: 17.2 dBi
• 60 GHz Beamwidth: Elevation: 30°, Azimuthal: ±60°

Summary

The Ubiquiti UBB Building Bridge offers high-speed, reliable point-to-point wireless connectivity with its 60 GHz and 5 GHz dual-radio design. With a maximum range of 500 m and included PoE power adapters, this bridge ensures seamless network extension between buildings. Its robust design, easy alignment features, and comprehensive management options make it a flexible and powerful solution for enterprise environments.
