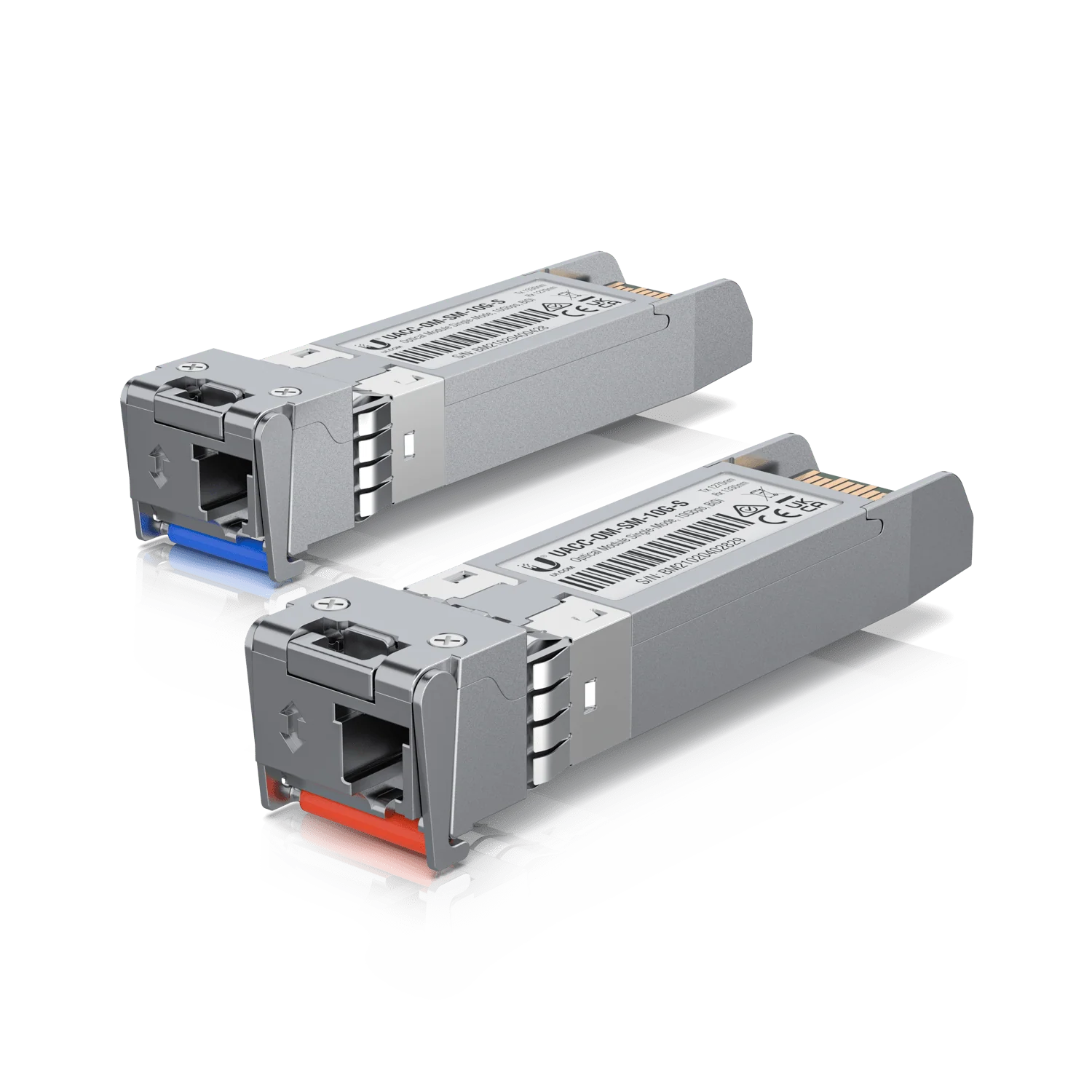

Ubiquiti UACC-OM-SM-10G-S 10G Bidirectional Single-Mode Optical Module 10KM SFP+ Transceiver
Ubiquiti UACC-OM-SM-10G-S 10G BiDi Single-Mode SFP+ Transceiver
The Ubiquiti UACC-OM-SM-10G-S is a high-performance 10G bidirectional SFP+ optical transceiver designed for long-distance single-mode fiber deployments. Offering up to 10 km of range and simplex LC connectivity, it ensures fast and efficient data transfer for enterprise networks, data centers, and point-to-point fiber links.
Highlights
-
10 Gbps bidirectional (BiDi) transmission
-
Supports single-mode fiber (SMF) with up to 10 km range
-
Simplex LC UPC connector for efficient fiber usage
-
Compact SFP+ format compatible with SFP/SFP+ slots
-
Low power consumption of 1W
-
Available in 2-pack and 20-pack options
Key Features
Optical Specifications
| Feature | Blue Latch Module | Red Latch Module |
|---|---|---|
| TX Wavelength | 1270 nm | 1330 nm |
| RX Wavelength | 1330 nm | 1270 nm |
Note: Modules must be used in matched pairs — one blue latch and one red latch — for bidirectional operation.
Hardware Specifications
-
Supported Media: Single-mode fiber (SMF)
-
Connector Type: Simplex LC UPC
-
Maximum Data Rate: 10 Gbps
-
Cable Distance: Up to 10 km
-
Power Consumption: Max 1W
-
Compatibility: SFP+ and SFP ports
-
Operating Temperature: 0 to 70°C (32 to 158°F)
-
Class 1 Laser Compliant: IEC/EN 60825-1:2014
Safety Notice
WARNING: CLASS 1 LASER PRODUCT. Do not look directly into the ends of the fiber optic cable or SFP module when powered.
Summary
The Ubiquiti UACC-OM-SM-10G-S BiDi SFP+ module delivers high-speed, long-distance fiber connectivity with simplified cabling and reliable performance. Ideal for 10G point-to-point links, it pairs a blue latch (1270/1330 nm) and red latch (1330/1270 nm) module to operate over a single fiber strand. Efficient, compact, and fully compliant with industry standards, it’s a future-ready transceiver for demanding network environments.
