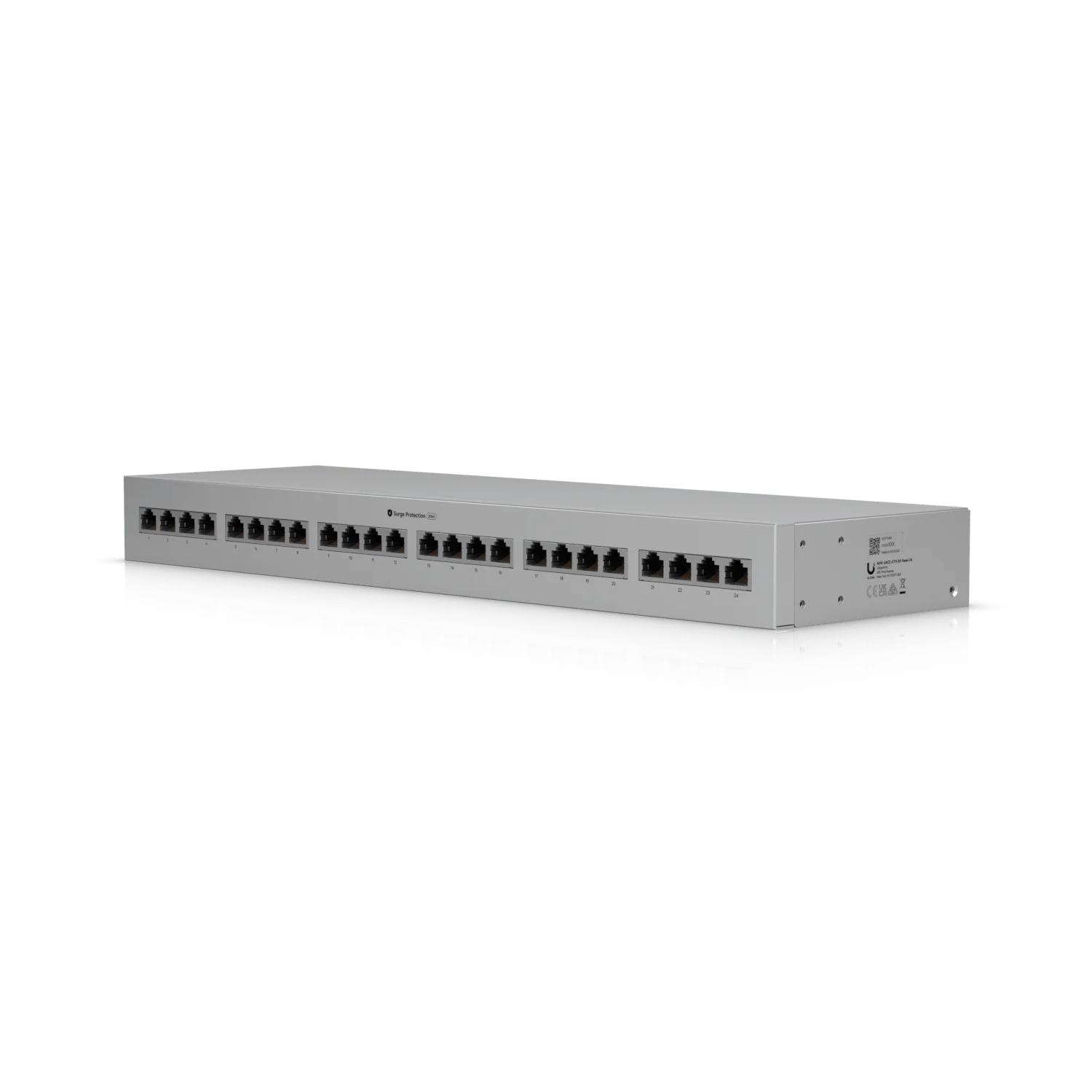

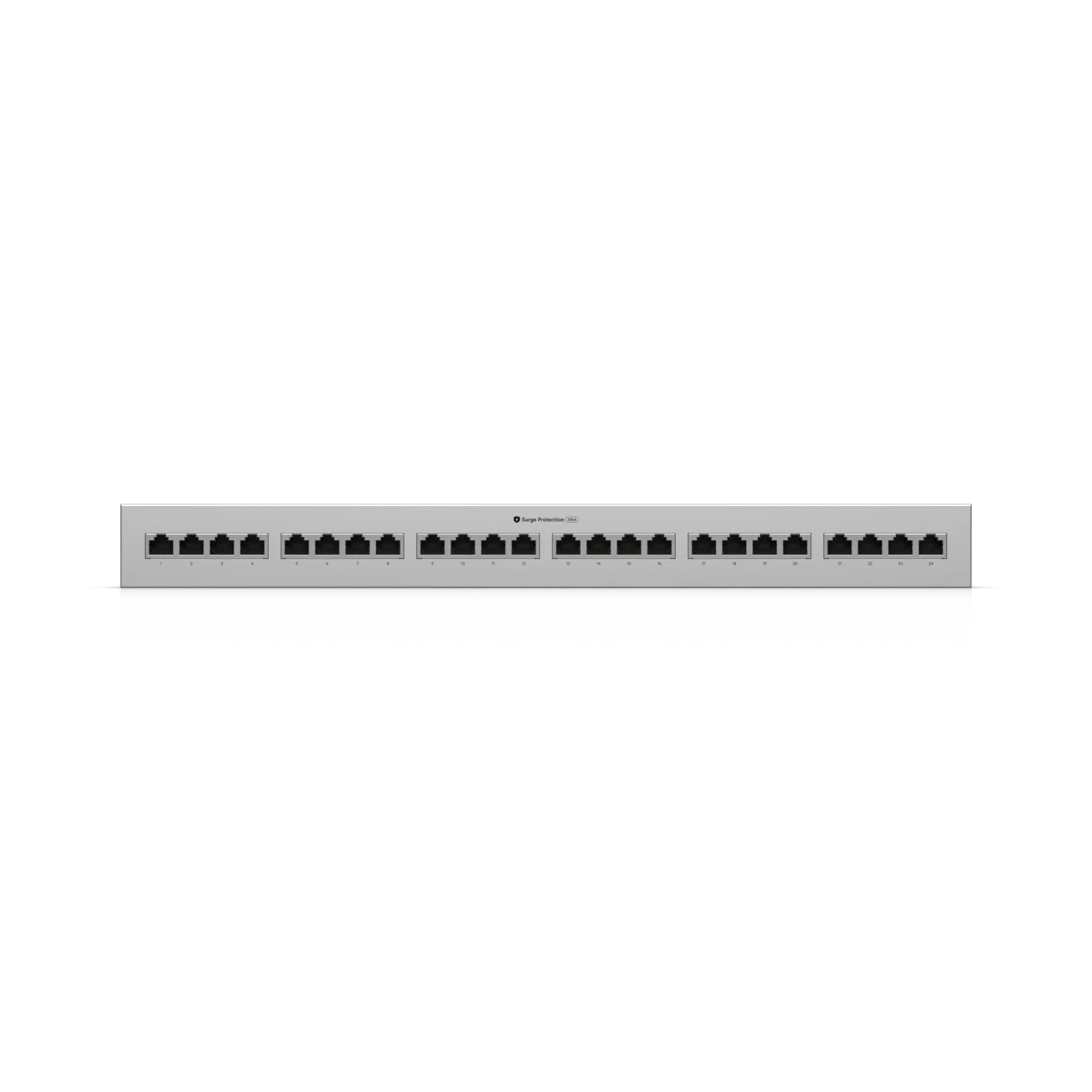

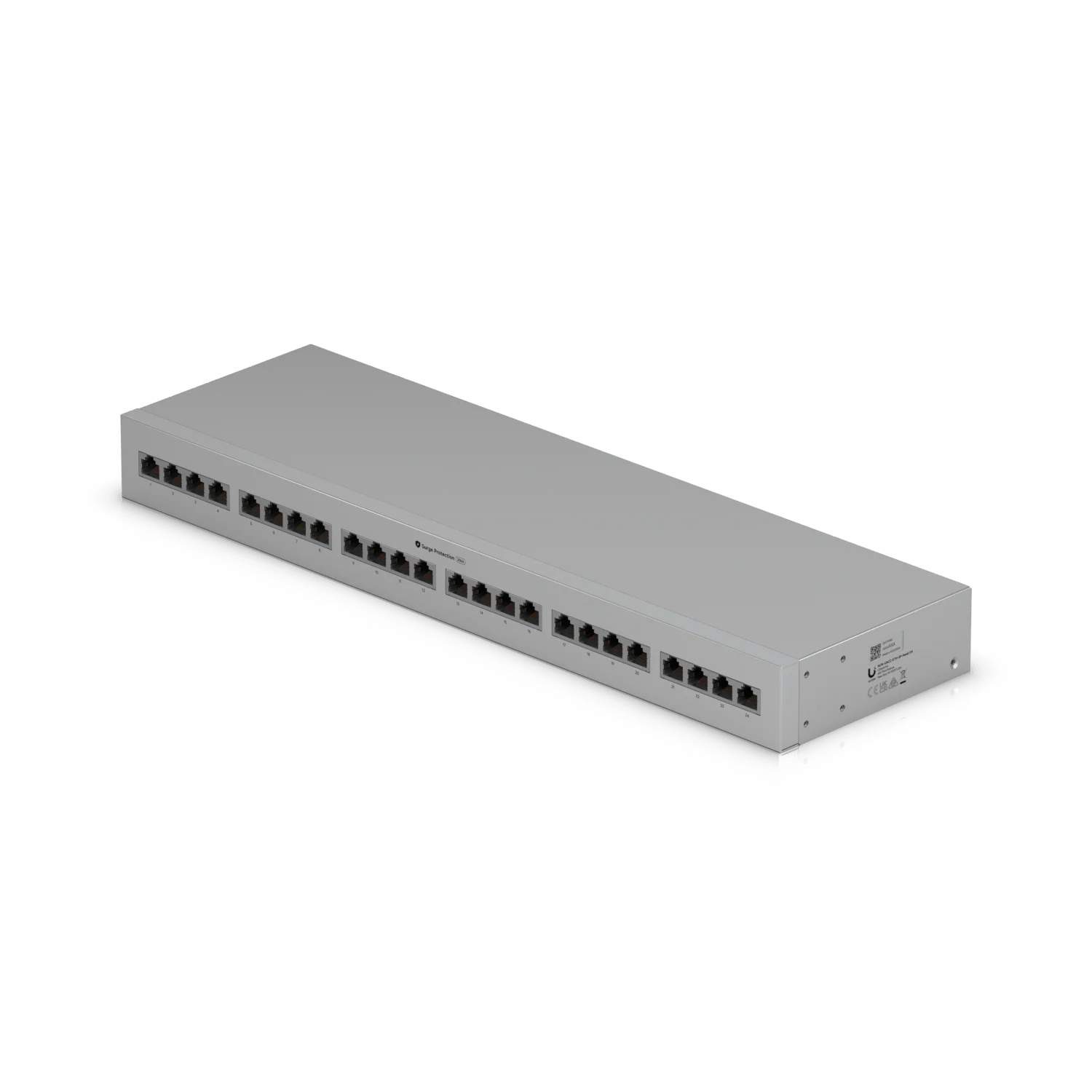

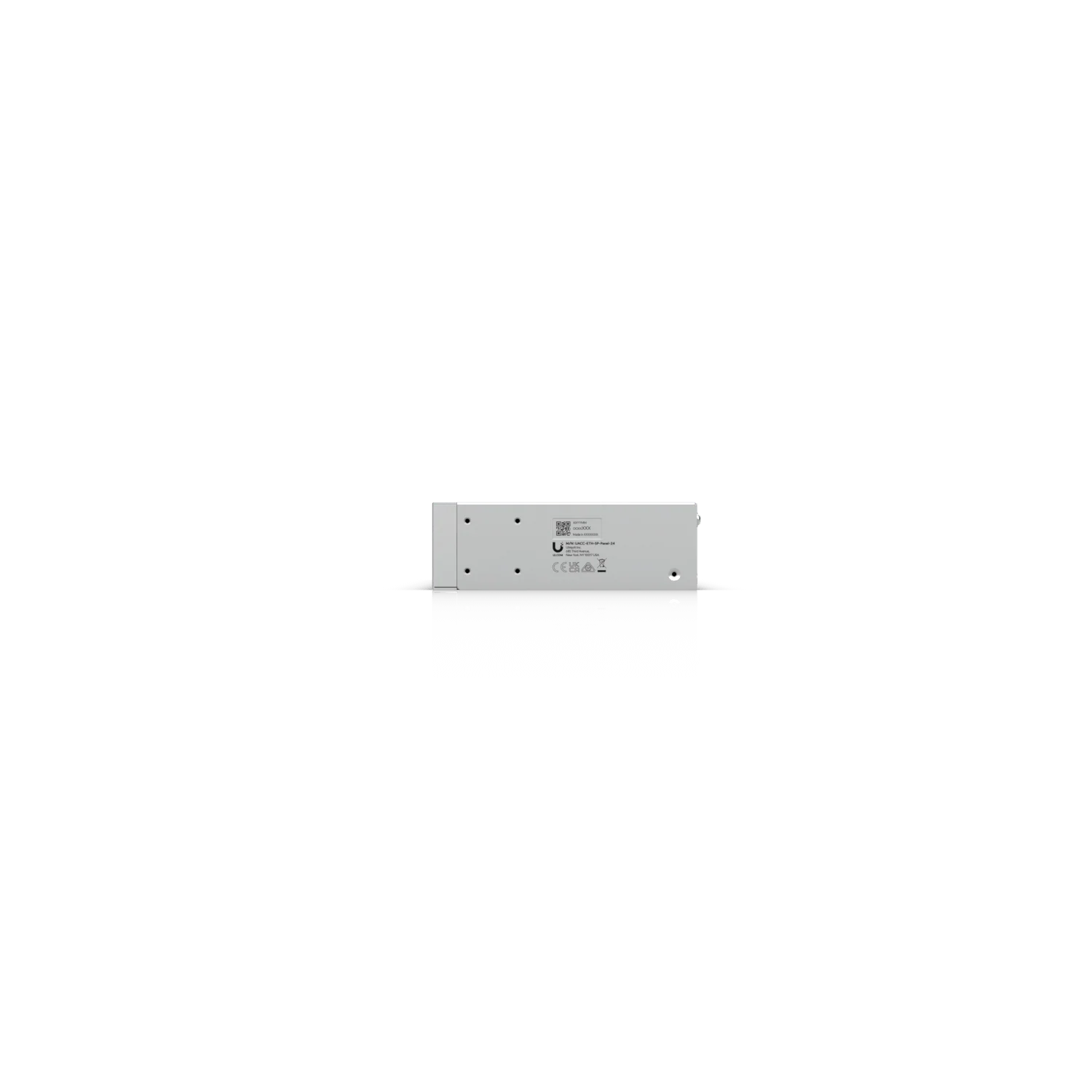

Ubiquiti UACC-ETH-SP-Panel-24 10GbE POE++ 20kA 24-Port Rackmount Ethernet Surge Protection

Enterprise-Grade Rackmount Surge Protection for 10GbE and PoE++ Networks

Safeguard your entire network infrastructure with the Ubiquiti UACC-ETH-SP-Panel-24, a 24-port rackmount Ethernet surge protection panel engineered for 10GbE and PoE++ environments. Designed for enterprise-scale applications, it provides robust 20kA surge discharge per port, ensuring maximum protection for connected devices and switches. The 1U form factor fits seamlessly into standard racks, offering centralized and efficient network protection.

Highlights

• 24-Port Surge Protection Panel: Provides comprehensive protection for all connected Ethernet lines.

• 10GbE and PoE++ Support: Handles high-speed data and power transmission without signal degradation.

• 20kA Surge Discharge per Port: Industrial-grade protection for mission-critical systems.

• 1U Rackmount Design: Fits standard racks for professional and organized installations.

• Durable SGCC Steel Construction: Offers exceptional rigidity and long-term reliability.

• Wide Operating Range: Functions from -40°C to +80°C for extreme conditions.

Key Features

High-Capacity Surge Protection

• 20kA Per Port Discharge Capability: Shields sensitive networking equipment from electrical surges and lightning strikes.

• DC Spark-Over Voltage: 90V @ 100V/s for precise surge response.

• Impulse Spark-Over Voltage: 600V @ 1kV/µs ensures rapid energy dissipation.

• Data Line Protection: Maintains 10 Gbps throughput across all ports for uninterrupted performance.

• PoE++ Compatibility: Fully supports Power over Ethernet devices such as access points, cameras, and switches.

Industrial-Grade Design

• Heavy-Duty SGCC Steel Enclosure: Provides superior durability and electromagnetic shielding.

• Compact 1U Form Factor: Streamlined integration into enterprise racks and cabinets.

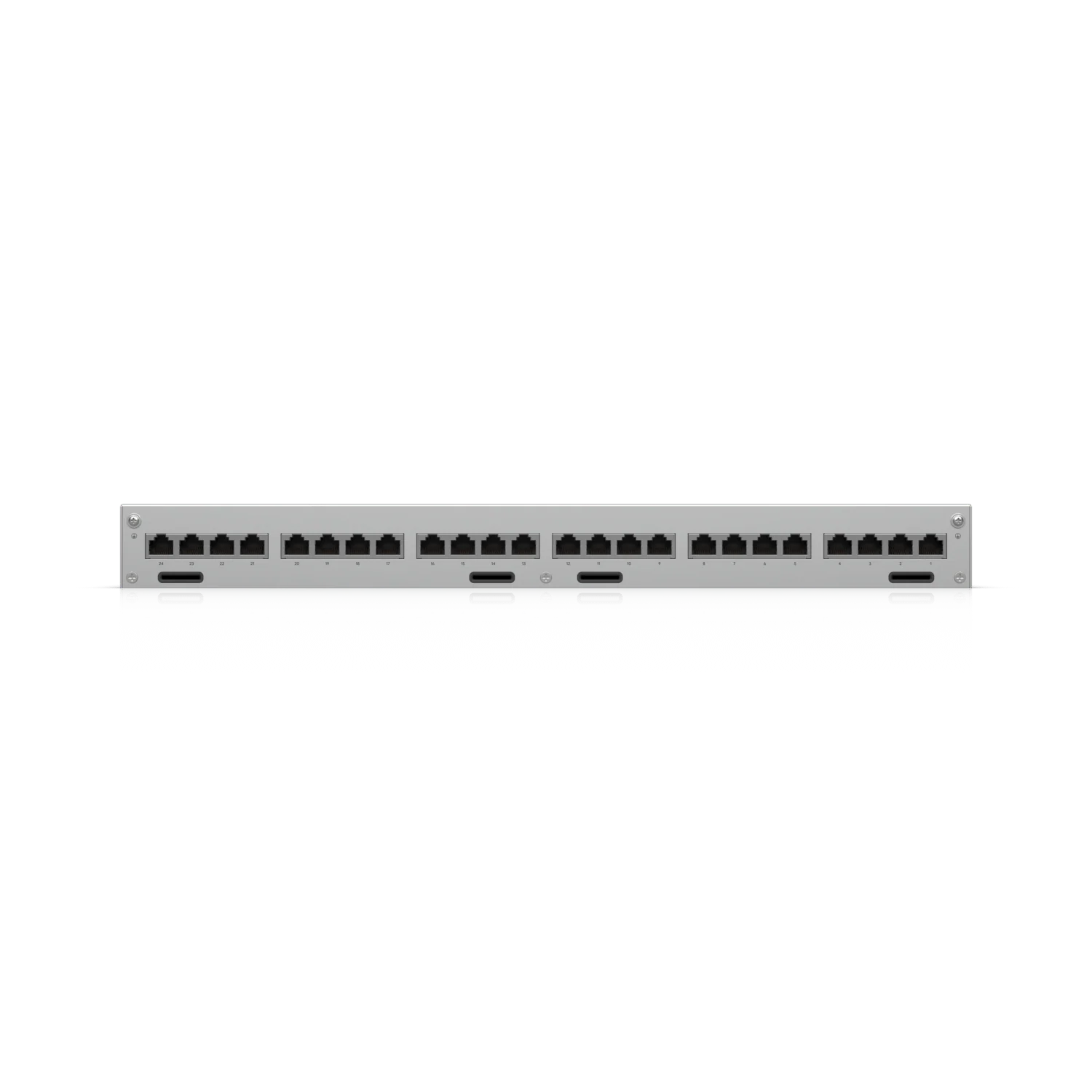

• 48 RJ45 Ports (24 Channels): Enables bidirectional protection across input and output connections.

• Operating Resilience: Performs reliably under harsh temperature and humidity conditions.

System Stability and Safety

• High Insulation Resistance: 1G ohm @ 50V ensures electrical isolation and signal integrity.

• Low Capacitance: 1.0 pF @ 1 MHz minimizes network interference and maintains performance.

• ESD and EMP Protection: Absorbs transient current and mitigates voltage surges from 100V/s to 1kV/µs.

• Centralized Grounding Integration: Provides efficient grounding pathways for multi-port installations.

Summary / Conclusion

The Ubiquiti UACC-ETH-SP-Panel-24 is a professional-grade 24-port Ethernet surge protection panel designed to safeguard high-density network environments. With 20kA discharge capability per port, PoE++ and 10GbE compatibility, and a rugged 1U rackmount build, it delivers enterprise-level reliability for data centers, industrial systems, and large-scale surveillance networks.
