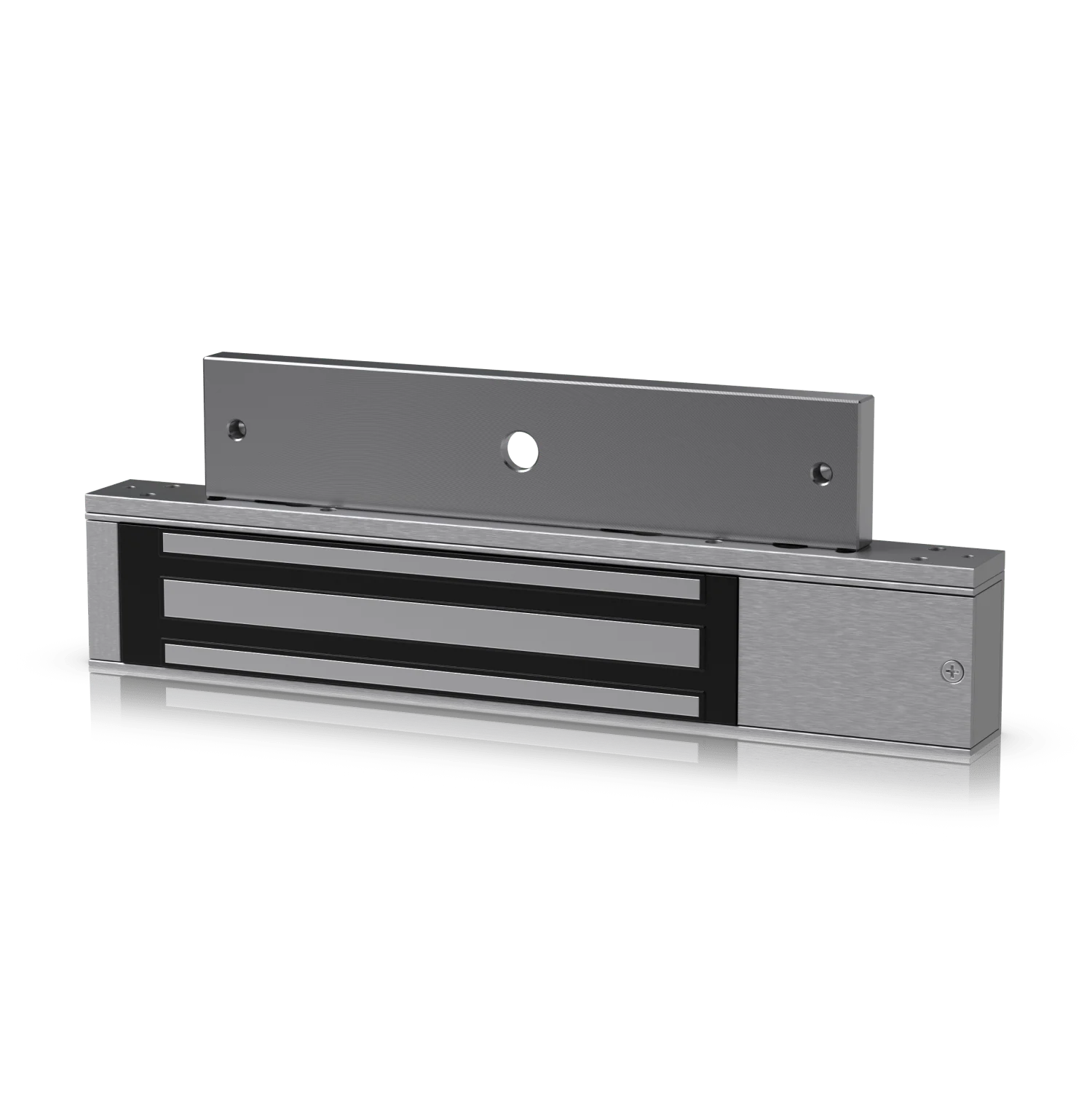

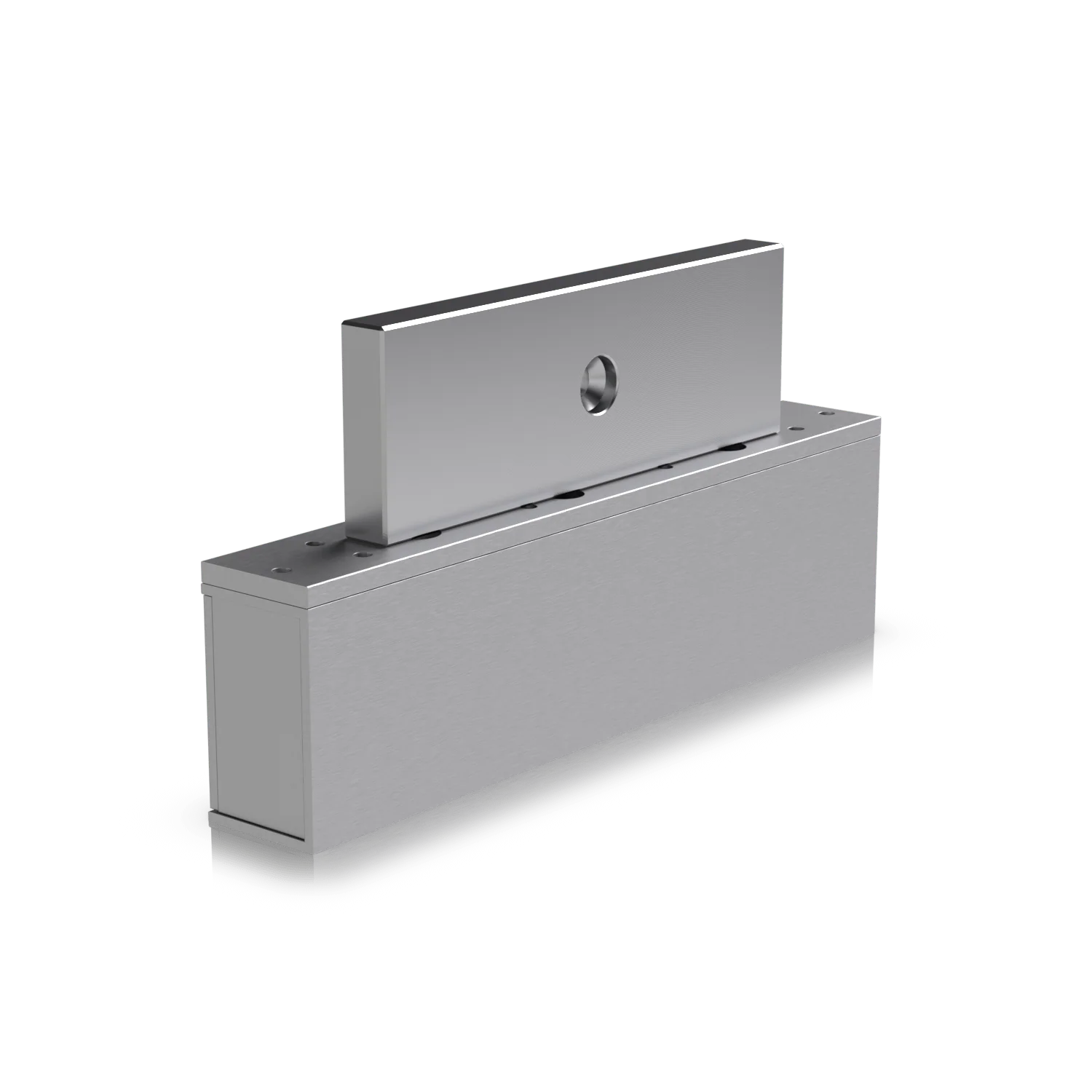

Ubiquiti UA-Lock-Magnetic Magnetic Lock
High-Security Fail-Safe Magnetic Lock
The Ubiquiti UA-Lock-Magnetic Magnetic Lock is a fail-safe lock designed for both inswing and outswing doors, ensuring high security and reliability. Available in two models, this lock offers different holding capacities and can be installed on a variety of door types, making it a versatile choice for access control systems.
Highlights
- Fail-Safe Mechanism: Ensures doors remain locked during power failures
- High Holding Force: Holds up to 270 kg (600 lb) or 540 kg (1,200 lb)
- Versatile Installation: Compatible with wooden, metal, and glass doors
Key Features
-
Strong and Reliable Security
- Fail-Safe Lock Type: Ensures security during power outages
- Single Door Application: Ideal for securing individual entry points
- High Holding Force: Available in 270 kg (600 lb) and 540 kg (1,200 lb) models
-
Flexible Installation Options
- Universal Suitability: UA-Lock-Magnetic-270kg is suitable for wooden, metal, and glass doors, while UA-Lock-Magnetic-540kg is suitable for wooden and metal doors

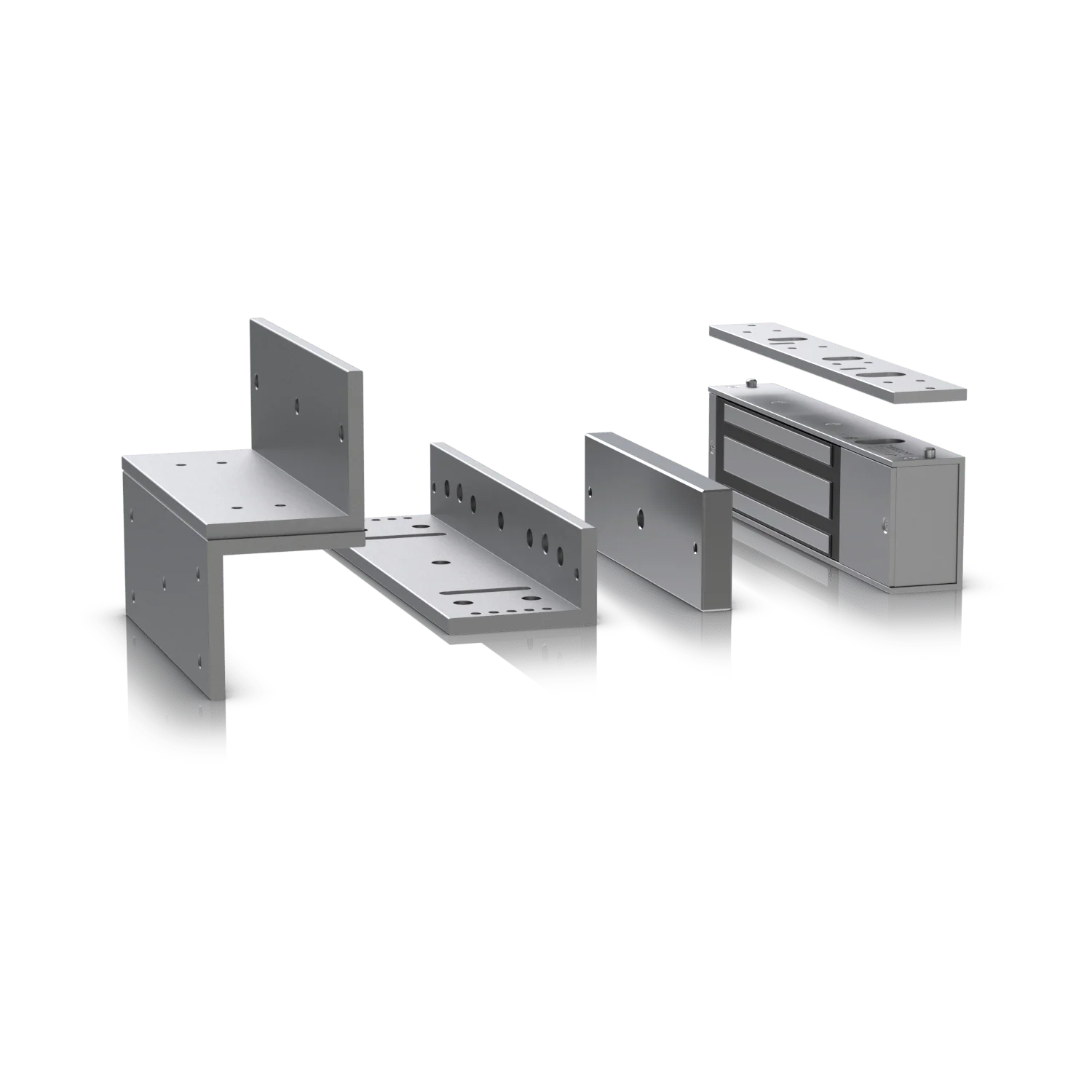

- Mounting Accessories: Includes L, Z, and U brackets for different door types and mounting configurations
-
Robust Construction
- Durable Materials: Made from aluminum and steel for enhanced durability
- Weather Resistant: Operates in temperatures from -10 to 50° C (14 to 122° F) and humidity from 5 to 90% noncondensing
Specifications
UA-Lock-Magnetic-270kg
| Specification | Details |
|---|---|
| Dimensions | Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1") |
| Install plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2") | |
| Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") | |
| Weight | Lock body: 1 kg (2.2 lb) |
| Install plate: 70 g (0.15 lb) | |
| Armature: 600 g (1.3 lb) | |
| Enclosure Material | Aluminum (device/brackets), steel (armature) |
| Voltage | 12V DC |
| Current Power | 800mA ±10% |
| Wiring Connection | Connect to UA-Hub (Lock 12V/NC, Lock 12V/COM, DPS/+, DPS/-) |
| Lock Type | Fail-safe |
| Holding Force | 270 kg (600 lb) |
| LED Indicator | Green: unlocked, Red: locked |
| Mounting Accessories | L bracket, Z bracket, U bracket |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
UA-Lock-Magnetic-540kg
| Specification | Details |
|---|---|
| Dimensions | Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") |
| Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") | |
| Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") | |
| Weight | Lock body: 2.9 kg (6.4 lb) |
| Install plate: 145 g (0.3 lb) | |
| Armature: 1.4 kg (3.1 lb) | |
| Enclosure Material | Aluminum (device/brackets), steel (armature) |
| Voltage | 12V DC |
| Current Power | 500mA ±10% |
| Wiring Connection | Connect to UA-Hub (Lock 12V/NC, Lock 12V/COM, DPS/+, DPS/-) |
| Lock Type | Fail-safe |
| Holding Force | 540 kg (1,200 lb) |
| LED Indicator | Green: unlocked, Red: locked |
| Mounting Accessories | L bracket, Z bracket |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Compatibility
- UA-G2-SK-Pro
- UA-G2-SK
- EAH-8
- UA-Hub
Summary
The Ubiquiti UA-Lock-Magnetic Magnetic Lock is a reliable and secure solution for access control, offering a fail-safe mechanism and high holding force. Suitable for a variety of door types, this lock ensures robust security and easy integration with UniFi Access Hubs. Its durable construction and versatile mounting options make it an ideal choice for both residential and commercial applications.
