Ubiquiti EAH-8 Enterprise Access Hub

Secure, Scalable Door Access Control for Enterprises

The Ubiquiti EAH-8 Enterprise Access Hub delivers enterprise-grade access control for up to eight doors with comprehensive input/output control, PoE capabilities, and emergency support. Built for indoor environments, the EAH-8 integrates with the UniFi Access ecosystem to offer flexible access point management, real-time event tracking, and battery backup support for fail-safe operation during power interruptions. Ideal for enterprise facilities, schools, and corporate campuses, it ensures secure, centralized access management at scale.

Highlights

• Supports up to 8 doors with entry and exit controls
• 8 PoE ports for streamlined power and data delivery
• 240W max power consumption, with 60W total PoE budget
• Battery backup support (32–48V DC) ensures uninterrupted access control
• Multiple dry and powered output relays for locks, chimes, sirens, and more
• UL 294 Level I compliance for endurance, standby power, and line security

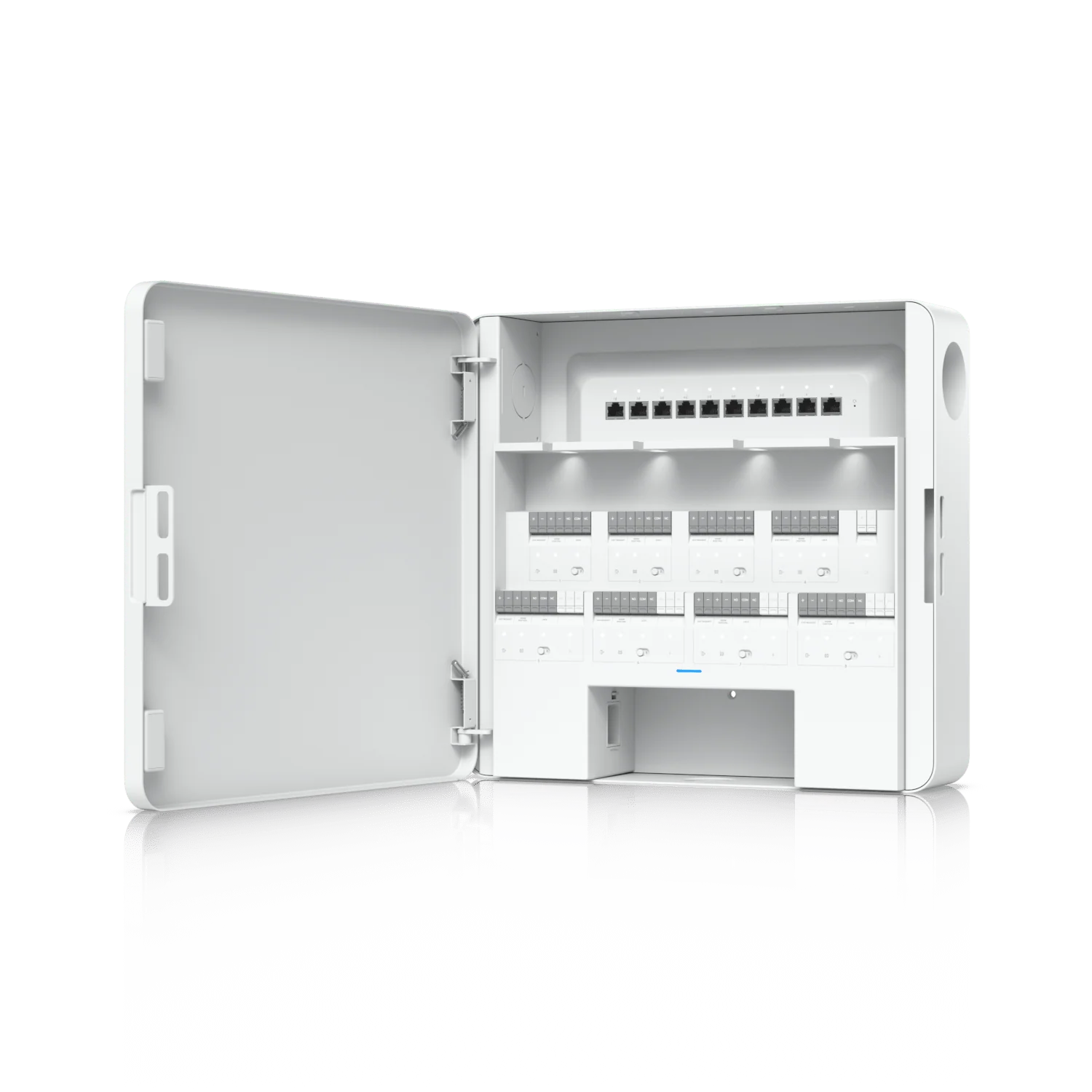

• SGCC steel housing with a polycarbonate cover for long-lasting protection

Key Features

Centralized Door Access Control

• Supports 8 doors with:
  • (8) request-to-exit inputs
  • (8) door position sensors
  • (1) emergency input
• (8) lock terminals (12V or dry contact)
• (4) AUX terminals for custom alerts or door-related peripherals

Intelligent Power Management

• Universal AC input (100–240V, Max. 4.4A)
• 32–48V DC battery input for backup power
• Internal AC/DC power supply with 240W max consumption
• 60W total PoE output via 8× PoE ports, up to 15.4W per port

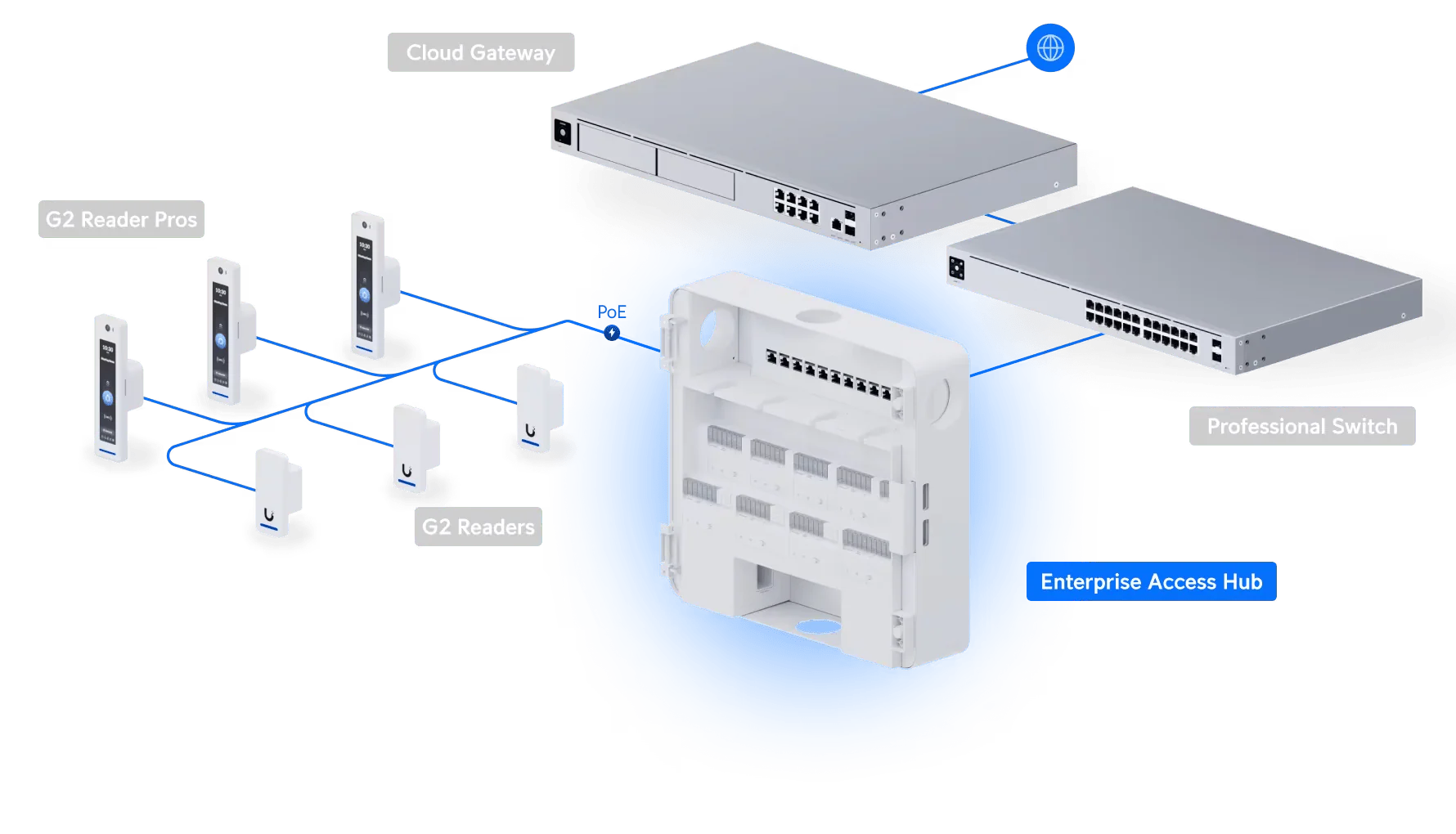

Networking & Integration

• (10) Gigabit Ethernet ports for seamless integration into UniFi networks
• Minimum Cat 5e cabling required for PoE delivery

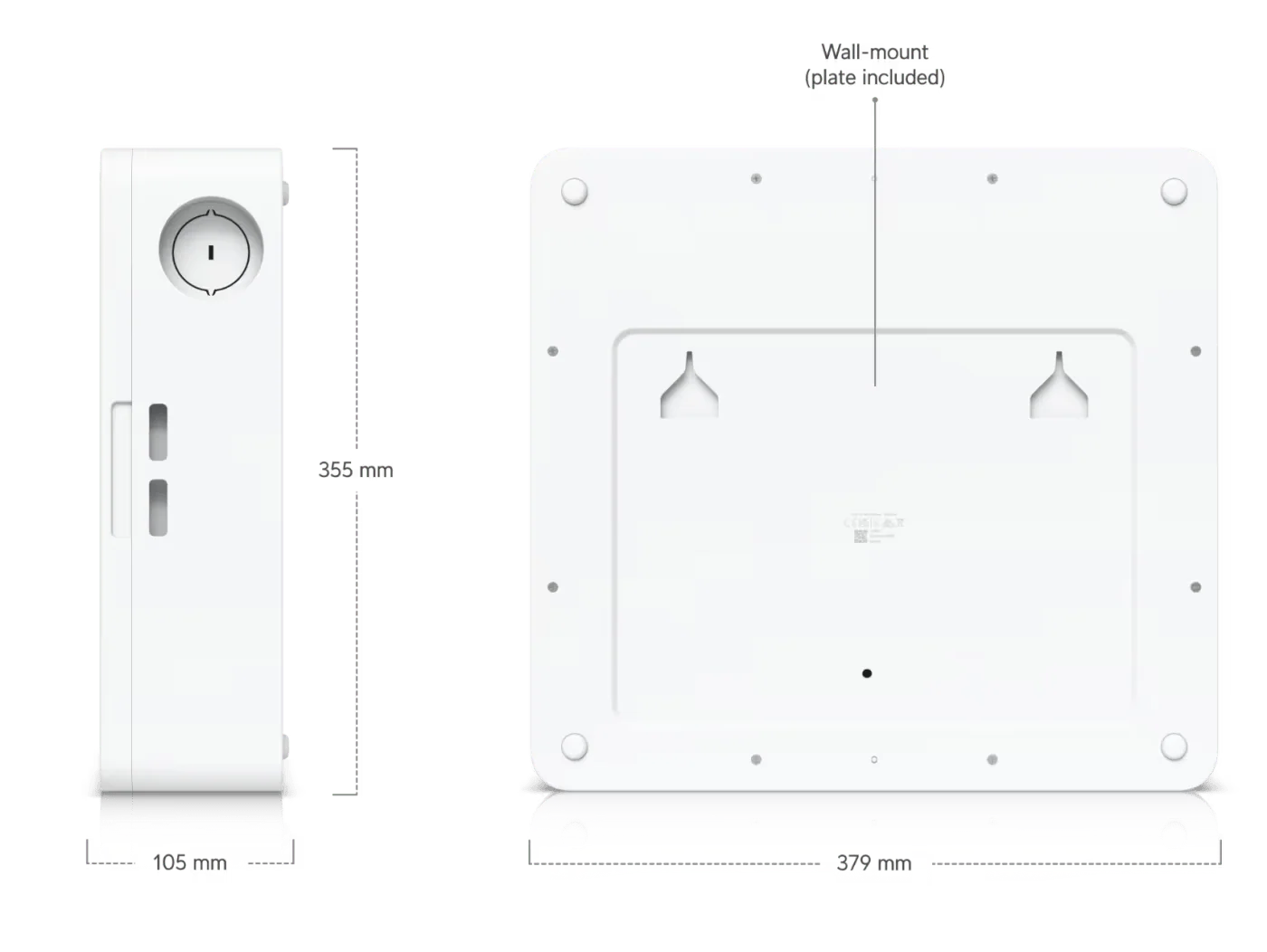

• Rugged wall-mounted design built for indoor use
• SGCC steel enclosure and mount materials for added durability

Lock Compatibility & Cable Guidelines

• Optimized for UA electric/magnetic locks
• Recommended cable lengths by AWG and lock model ensure reliable operation
• Max lock output: 12V DC, 1A
• Supports dry or powered relay output based on lock requirements

Compliance & Certifications

• Complies with UL 294 Level I for:
  • Destructive attack
  • Line security
  • Endurance
  • Standby power
• Designed for Class 2 and 3 circuit standards per NFPA 70 Article 725.121
• Note: IEEE 802.3 PoE compliance not verified under UL 294 testing

Summary

The Ubiquiti EAH-8 Enterprise Access Hub is a powerful, centralized access control system for up to eight doors, offering full relay control, PoE power delivery, and emergency input support. With dry and powered outputs, robust construction, and fail-safe battery backup, it meets the access control demands of large-scale enterprise installations with ease and reliability.
