Hiti CS-220e Transparent Plastic ID Card Printer
Efficient & Versatile Printing Solution
The HiTi CS-220e Transparent Plastic ID Card Printer is designed to deliver dependable, high-speed ID card printing with advanced features and robust performance. Ideal for businesses, educational institutions, and organizations, it offers versatile encoding options, a sleek design, and minimal maintenance requirements.
Highlights
- High-Speed Printing: Produces professional-grade ID cards in just 21 seconds (YMCKO) or 4.5 seconds (resin black).
- Advanced Encoding Options: Supports smart IC chip, RFID, and magnetic stripe encoding for flexible applications.
- Compact & Lightweight: A small footprint and quiet operation make it perfect for any workspace.
- Flexible Add-Ons: Enhance functionality with optional flipper modules, high-capacity hoppers, and Ethernet connectivity.
Performance Features
- 300 dpi Resolution: Delivers sharp, vibrant images and crisp text for high-quality cards.
- Input/Output Capacity: Accommodates 100 cards in the input hopper and 50 cards in the output hopper.
- Card Compatibility: Supports CR-80 cards made of PVC or polyester with a polished finish, ranging from 10–40 mil in thickness.
Technical Specifications
| Feature | Details |
|---|---|
| Model Name | CS-220e Transparent Card Printer |
| Print Method | Dye Sublimation (Direct-to-Card) |
| Resolution | 300 dpi continuous tone |
| Print Ribbon Options | YMCKO: 400 prints, YMCKO (Half Panel): 560 prints, YMCKOK: 330 prints, Resin Black: 1000 prints |
| Print Speed | 21 sec (YMCKO), 4.5 sec (Resin Black) |
| Card Size & Type | CR-80 (2.13 × 3.37 in), PVC or Polyester with polished PVC finish |
| Hopper Capacity | Input: 100 cards, Output: 50 cards |
| Memory | 64MB + 8MB Flash |
| Interface | USB 2.0 (Ethernet optional) |
| Power | DC 24.5V/4.08A |
| Dimensions & Weight | 7.8 × 8.03 × 13.94 in (199 × 207 × 354 mm), 4.9 kg (10.8 lbs) |
| Operating Systems | Windows 7/8/10/11+, macOS v.10.6+ |
| Certifications | FCC, CE, CCC, NCC |
Optional Accessories
- Flipper Module: Enables dual-sided printing.
- High-Capacity Hopper: Holds up to 400 cards for large-scale operations.
-
Encoding Modules:
- Magnetic Stripe Encoding (ISO 7811 Hi-Co & Lo-Co)
- RFID Encoding (ISO 14443A/B, ISO 15693)
- Smart IC Chip Encoding
- Ethernet TCP/IP Module: For seamless network integration.
- Cleaning Roller: Maintains consistent print quality by removing dust and debris.
User-Friendly Design
- Quiet Operation: Ensures a peaceful work environment.

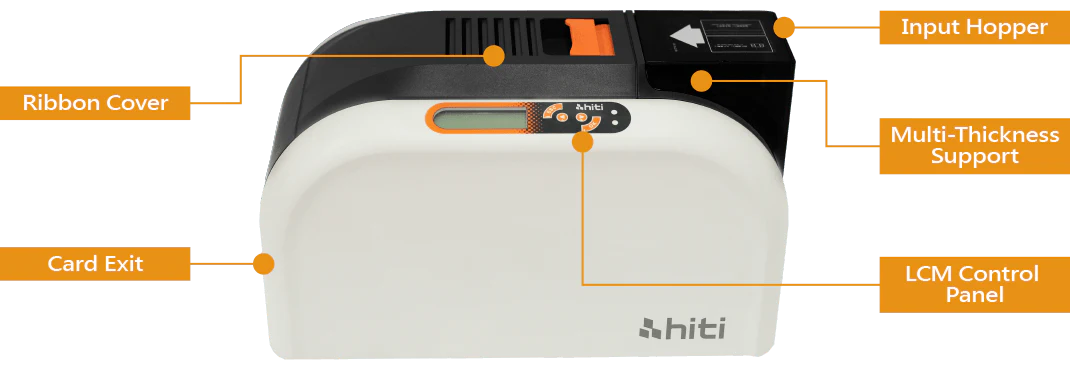

- Intuitive Interface: Multi-language LCM display and user-friendly controls streamline operations.
- Aesthetic Excellence: Modern, compact design fits seamlessly into any workspace.
Summary
The HiTi CS-220e Transparent Plastic ID Card Printer combines speed, quality, and versatility to meet the demands of professional ID card printing. With optional add-ons and robust encoding capabilities, it's a reliable solution for all your card issuance needs.
